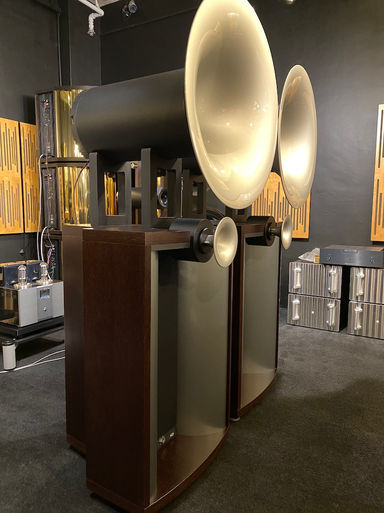

The Avantgarde Acoustics Mezzo XD pairs two of the characteristic spherical horns with an actively equalized folded-horn bass unit, creating a vertical array that whilst deep has a surprisingly narrow frontal aspect, which combined with the ability to use it hard up against a wall makes this possibly the most practical full-range horn system out there -- something that just improved even further with the XD’s inclusion of a full ten-band, frequency-agile parametric DSP EQ system to dial in the bass.

Tweeter specifications:
HORN:

Horn type: Spherical horn
Horn material: ABS, pressure molded
Horn finish: polished and lacquered
Horn dispersion angle: 180 degrees
Horn area: 0.025 sqm
Horn diameter: 180 mm
Horn length: 85 mm
HORN DRIVER:
Membrane diameter: 50 mm
Membrane material: Mylar
Magnet material: Ferrite

Midrange specifications:
HORN:
Horn type: Spherical horn
Horn material: ABS, pressure molded
Horn finish: polished and lacquered
Horn dispersion angle: 180 degrees
horn mouth area: 0,353 sqm
horn diameter: 670 mm
horn length: 370 mm
CDC (Controlled Dispersion Characteristic): yes
HORN DRIVER:
membrane diameter: 170 mm
membrane material: Soft Mesh
magnet material: Alnico

SUBWOOFER DRIVER:
Driver diameter: 300 mm/12“
Membrane material: SCS reinforced paper
Magnet material: Ferrite
Drivers per subwoofer: 2

SUBWOOFER AMPLIFIER:
Amplifier power (RMS): 1000 Watt, Class-D
Active crossover: programmable by built-in DSP
Subsonic filter: programmable by built-in DSP
12V trigger input: yes
Limiter: yes
Programmable via LAN/USB: yes/yes
Inputs, switchable: 1 x speaker-level and 1 x XLR (f)
Loop-through output: 1 x XLR (m)
