PSVANE WE300B Tube Replica *SOLD*
SOLD
*Original price SGD900/pr
*Very good condition
Product Description

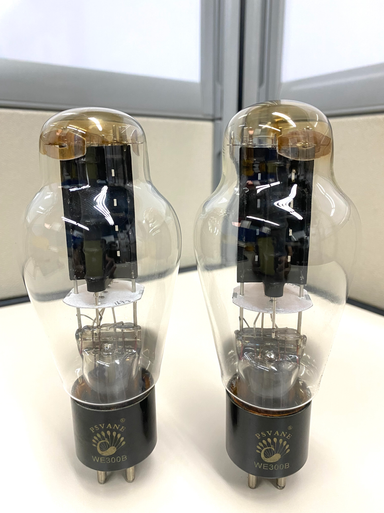

The PSVANE WE300B Western Electric Replica get shipped as factory matched pair
Psvane WE 300B has exactly the same electronic and mechanical specification as the original Western Electric WE 300B.
A timeless beauty in perfect build quality for years of your audio performance
The long waiting of the American WE300B re-issue from USA seems endless; but now the manufacturer Psvane Audio has stepped up to make a 1:1 replica of the original WE300B.
According to Psvane Audio, the Psvane WE300B Replica is: "100% 1:1 replica of WE300B, including materials, structure, internal and external size - up to the detail of a tiny screw used".
Sample production run in Dec 2011 with test launch has resulted in raving reviews by audiophiles. Since 2012 the Psvane WE300B quickly became reputed as one of the highest quality 300B type tube manufactured all time.
All tubes will be double tested by our custom TAD test rig to ensure to supply PSVANE tubes in perfect quality.
Suggested burn-in time is 80-150 hours
Specifications
Filament heating
Uf(DC)………………5V
If(DC) …………… 1.2A
Static Parameter
Ua……………………300V
-Ug………………… 60V
Ia……………………60mA
Gm…………………5.5mA/V
ri……………………0.7 KΩ
u ……………………3.85
Pout…………………6.6W
Maximum rated parameter
Ua………................……480V
anode dissipation………40W
cathode current
cathode bias………………100 mA
fix bias ……….............……70 mA
interelectrode capacitance
input capacitance ……….…9.0PF
output capacitance ……..…4.3PF
transfer capacitance …….15.0PF
