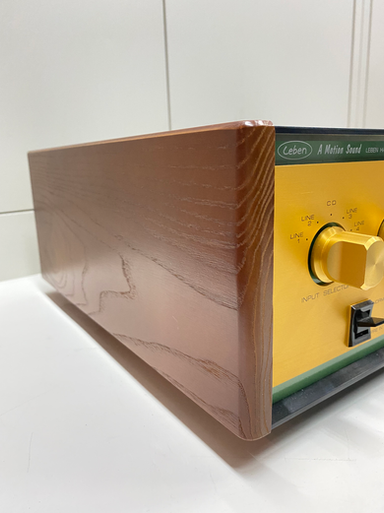

Leben Hifi CS-600 Integrated Amplifier *SOLD*

SOLD

Very good condition. No box.

Product Description

The Leben CS-600 is a top-range integrated amplifier utilising the best components and workmanship. By switching two selectors inside of the cabinet, you can use either of 6L6GC or 6CA7/EL34 (not included) and LED indicators on the front panel will show you which tube setting is applied. Pre-amp In terminals on the rear panel allow you to use CS-600 as a power amplifier by switching a selector on the front panel, you can by-pass all the functions except the volume control. A wide-range and flat frequency response up to 100kHz is capable enough for digital audio formats such as high resolution streaming, SACD and HDCD.

Highlights:
-Twin-triode tube 6CS7 for the first-stage amplification
-WBT type speaker terminals
-Heavy-duty output transformer for 50W grade amplifiers
-Large capacity choke-coil: 5H350mA
-Dumper tube 6CJ3 (for colour TV use) is applied to delay a supply of high voltage (B-Voltage) to output tubes in order to protect output tubes from damages and to extend the life.
-All high-end audio grade electrical components (capacitors, resistors)
-Operation lamp indicator
-Matching front design of CS-300 / CS-300X / RS-30EQ phono stage
-24K Gold-plated knobs
-Side wooden panels

Features:
-Power amp direct switch (All functions by-passed except volume control)
-Muting switch
-Stereo / reverse switch
-Balance control
-Tape monitor
-5 selectable inputs
-Headphone output
-Bass-Boost switch (0dB, +3dB, +5dB)
-Speaker / headphone selector
-24K Gold plated control knobs
-Auto-Bias
-Variable output impedance: 4 / 6 / 8 / 16 Ohms
-Operation lamp indicator
-On switch power indicator LED

Specifications

-Valves: 4x 6L6GC (5881) SOVTEK, (EL34 / 6CA7 - Option); 4x 6CS7; 1x 6CJ3
-Output Power: 32W x 2 (6L6GC) at 1kHz; 28W x 2 (EL34) at 1kHz
-Inputs: 5 line inputs via RCA plus tape monitor
-Frequency Response: 10Hz - 100kHz (-0.1dB)
-Distortion: 0.7% (10W)
-Input Sensitivity: 900mV
-Output Impedance: 4 / 6 / 8 / 16 Ohms (Selectable)
-Power Supply: 240V / 50Hz
-Weight: 22.5 kg (approx)
-Dimensions: 45cm x 36cm x 14.2cm (W x D x H - approx. including knobs and terminals)

Return & Refund Policy

• All Pre-Owned items have been tested before listing.
• NO WARRANTY.
• We encourage buyers to test and verify the equipment condition at our showroom (1 Coleman Street, The Adelphi, Unit 03-35) — pre-owned condition as shown on our listed page.
